Name: MQ303A Semiconductor Type Alcohol Sensor
Price: 234.82 INR
Availability: InStock

home

HOME

composite-material

COMPOSITE MATERIAL

downloads

DOWNLOADS

about-us

ABOUT US

contact-us

CONTACT US

certifications

CERTIFICATIONS

gst-itc

GST ITC

payment-options

PAYMENT OPTIONS

return-exchange

RETURN & EXCHANGE

terms-of-service

TERMS OF SERVICE

privacy-policy

PRIVACY POLICY

shipping-policy

SHIPPING POLICY

general

GENERAL

all-products

All Products

drone-kit

Drone Kit

fpv-kit

FPV KIT

drone-motors-bldc

Drone Motors (BLDC)

t-motor

T-MOTOR

emax

EMAX

betafpv

BETAFPV

hglrc

HGLRC

tarot

Tarot

drone-transmitter-and-receiver

Drone Transmitter and Receiver

flysky

Flysky

radiomaster

Radiomaster

frysky

Frysky

radiolink

Radiolink

siyi

SIYI

jumper

Jumper

drone-frame-and-accessories

Drone Frame and Accessories

quadcopter

Quadcopter

hexacopter

Hexacopter

octacopter

Octacopter

flight-controller-accessories

Flight Controller & Accessories

raspberry-pi-accessories

Raspberry Pi & Accessories

gimbal-accessories

Gimbal Accessories

telemetry

Telemetry

gps-and-antennas

GPS and Antennas

simulators

Simulators

connectors

Connectors

arduino-boards

Arduino Boards

3d-printing-filament

3D Printing Filament

electronic-instruments-and-tools

Electronic Instruments and Tools

soldering-tools

Soldering Tools

smart-gadgets

Smart Gadgets

servo-motors

Servo Motors

robotics-accessories

Robotics Accessories

batteries

Batteries

sensors

Sensors

wires-and-cables

Wires and Cables

esc-drone-speed-controller

(ESC) Drone Speed Controller

fpv-esc

FPV ESC

tapes-and-adhesive

Tapes and Adhesive

red-acrylic-polyester-tape

Red Acrylic Polyester Tape

duct-tape

Duct Tape

cross-filament-tape

Cross Filament Tape

masking-tape

Masking Tape

printed-tape

Printed Tape

miscellaneous

Miscellaneous

camera

Camera

propellers

Propellers

0-3-inch

0-3 Inch

9-15

16-22

battery-chargers

Battery Chargers

heat-shrink-tubing-sleeve

Heat Shrink Tubing / Sleeve

pvc-heat-shrink

PVC Heat Shrink

1-mm-to-4-mm

1 mm to 4 mm

5-mm-to-10-mm

5 mm to 10 mm

heat-shrink-combos

Heat Shrink Combos

carbon-fiber-product

Carbon Fiber Product

carbon-fiber-sheet

Carbon Fiber Sheet

carbon-fiber-tube

Carbon Fiber Tube

balsa-sheets

Balsa Sheets

fixed-wing-parts

Fixed Wing Parts

motor-spinner

Motor Spinner

servo-motors-1

video-transmitter-receiver

Video Transmitter & Receiver

fpv-goggles

FPV Goggles

screws-and-nuts

Screws and Nuts

drone-accessories

Drone Accessories

Footer

Terms & Conditions
Please read these Terms and Conditions ("Terms", "Terms and Conditions") carefully before using our webstore operated by our company/entity. ("us", "we", or "our"), or the services provided therein (the “Service”).  These Terms apply to all visitors, users and others who access or use the Service.
Your access to and use of the Service is conditional upon on your acceptance of and compliance with these Terms.  By accessing or using the Service you agree to be bound by these Terms. If you disagree with any part of the terms, do not access or use the Service.
We reserve the right to revise these Terms from time to time. Please check these Terms from time to time for any amendments. Your continued use of the Service after these Terms have been amended will be deemed to constitute your acceptance of the amended Terms.


Placing an Order
To place an order through our webstore, click on the product that you wish to purchase and follow the onscreen instructions. Your purchase of the product shall be subject to the terms and conditions contained in our webstore in relation to the product.
You should take care to ensure that all the information you provide to us is correct. Please check your Order before submitting it to us. If you are placing an Order for a product which is digital content, you must check that the specifications of your computer or device meet the hardware and software requirements.
After you have placed an Order, we will send an email to you acknowledging that we have received your Order. This acknowledgement does not, however, mean that your Order has been accepted by us.
We are not obliged to accept your Order and may at our discretion decline to accept any Order. In the event we decline to accept an Order, we may send an email to you notifying you that we do not accept your Order. This is typically for the following reasons:
a.	the product is not available;
b.	we cannot authorise your payment;
c.	you are not allowed to purchase the Product from us under the applicable law;
d.	we are not allowed to sell the Product to you under the applicable law; or
e.	there has been an error in the pricing or description of the product.


When we accept your Order, we will confirm such acceptance by sending an email to you confirming that we have received your Order and will be preparing to ship the product to your address or, in the case of Products which are digital content, providing you with instructions on how the digital content can be downloaded (“Confirmation Email”). A binding contract in respect of the product ordered will be formed between you and us when the Confirmation Email is sent to you.


Cancellation & Refund
If you change your mind, or the product you received is not what you expected or are otherwise not satisfied with our product, please contact us before returning the item.
You have [fourteen days] to return an order after receiving it.
If the product or packaging is used or damaged, we reserve the right to deduct any depreciation in value when refunding the product.
Unless otherwise agreed upon, the refund will be processed through the same payment method you used to make your original purchase.


Shipping & Delivery
Products in stock are normally delivered within the number of working days shown on our website.
We will deliver the Products to the address given in your Order. If no one is at the address at the time of delivery, we will inform you of an alternative time for the delivery or a location where you can collect the Products.
Unless arrangements are made with us, you must cover the cost of the return. We reserve the right to not allow for returns or exchanges to our products.
Please note that exceptions may apply for the return of certain custom-made, hygienic and other products
You are responsible for any damage incurred by items during the return shipment. We therefore strongly recommend that you send the products well packaged, in good condition and in their original box and/or packaging.
If possible, please provide us with a tracking number for the return shipment.
If a returned item is shipped internationally, mark as “RETURNED GOODS” to avoid any Customs charges. We are not responsible for any charges imposed on packages returned by Customs.
If you have any questions, please contact us.


Disclaimer
The information contained on our webstore is for general information purposes only. We assume no responsibility for errors or omissions in the contents of our webstore or in the course of providing the Service. In no event shall our company be liable for any special, direct, indirect, consequential, or incidental damages or any damages whatsoever, whether in an action of contract, negligence or other tort, arising out of or in connection with the use of our products, our webstore or the Service.
We reserve the right to make additions, deletions, or modification to the contents on the webstore at any time without prior notice. We do not warrant that the webstore is free of viruses or other harmful components.
You agree that we do not make any representations or warranties of any kind (implied, express or statutory) including warranties as to merchantability, satisfactory quality or fitness for a particular purpose, in respect of our products and/or the Service.  In addition, we do not make any representations or warranties that any digital content which we supply to you is (i) compatible with any third party software or equipment; or (ii) free of errors or bugs.


Privacy
The security of your Personal Information is important to us, but remember that no method of transmission over the Internet, or method of electronic storage, is 100% secure. While we strive to use commercially acceptable means to protect your Personal Information, we cannot guarantee its absolute security.
We may use your Personal Information to contact you with newsletters, marketing or promotional materials.


Governing Law and Jurisdiction
These Terms shall be governed by and construed in accordance with the laws of the country which we have our primary place of business in. All disputes arising out of or in connection with these Terms shall be submitted to the exclusive jurisdiction of the Courts of the said country.


Header

This Website is Owned and Operated By - R P SONS DIGITAL ENTERPRISES

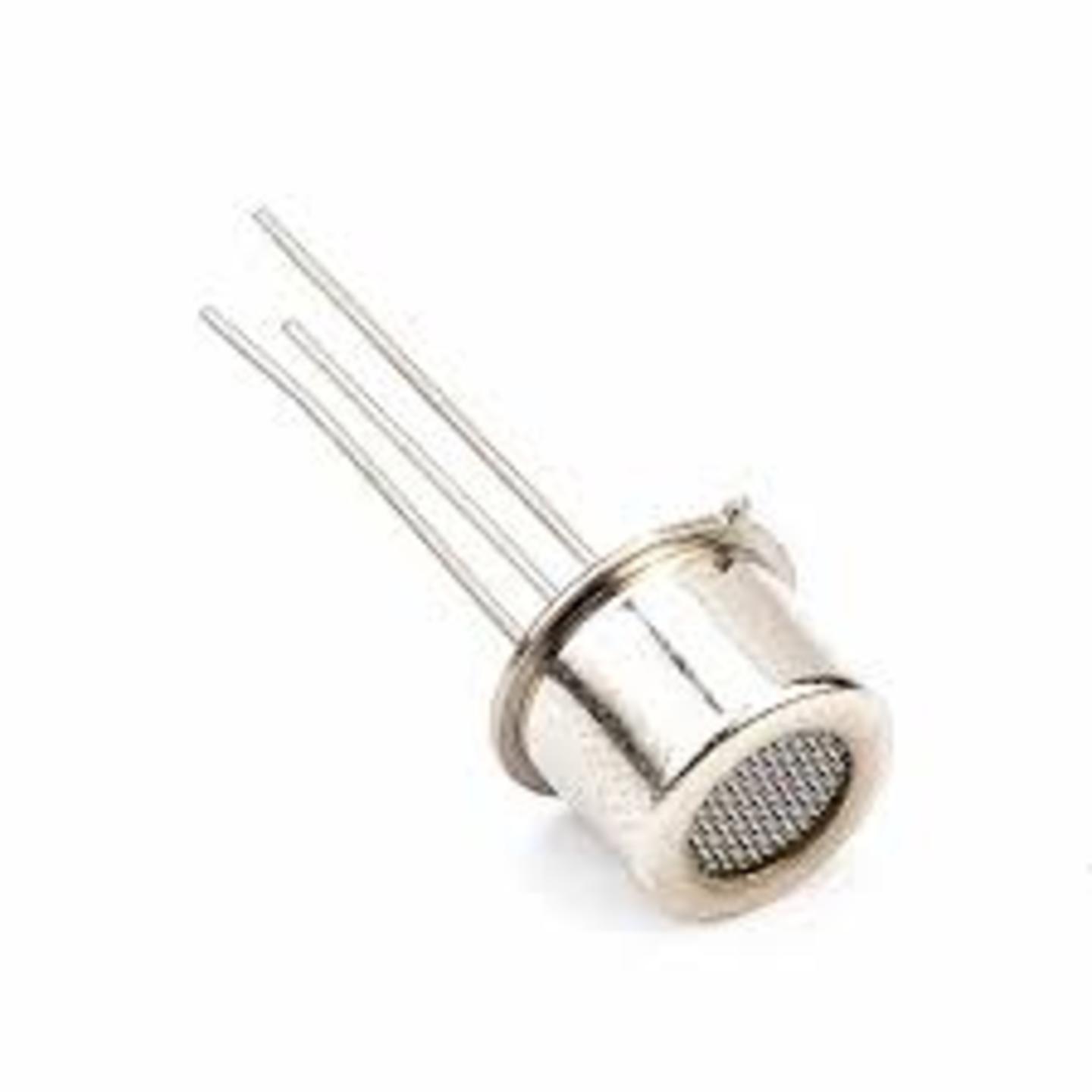

Winsen Semiconductor Type Alcohol Sensor is an original and brand new mini size alcohol sensor for gift-type breathalyzer use.

The sensitive material of the MQ303B gas sensor is a semiconductor material which is with lower conductivity in clean air. When the target alcohol gas exists, the sensor’s conductivity gets higher along with the gas concentration rising. Users can convert the change of conductivity to correspond output signal of gas concentration through a simple circuit.

Semiconductor Type Alcohol Sensor has a high sensitivity to Alcohol gas. It is a kind of low-cost sensor for kinds of applications and also a mini size gift-type Alcohol sensor breathalyzer.

Applications :
It has a high sensitivity to alcohol and quick response and resume, widely used in portable alcohol gas detectors.

Features:
Responsive to Alcohol gas
Compatible with 5V
Cost-efficient
Package Includes:
1 x MQ303A Semiconductor Type Alcohol Sensor

Model Type
MQ303B

Sensor Type
Semiconductor

Standard Encapsulation
Metal

Target Gas
Alcohol

Detecting Range
20~ 500ppm alcohol

Load Resistance
Adjustable

Heater Voltage
≤6V DC

Sensitivity
R0(in air)/Rs(in 125ppm C2H5OH)≥3

Tem. Humidity:
20℃±2℃ 55%±5%RH

MQ303A Semiconductor Type Alcohol Sensor
