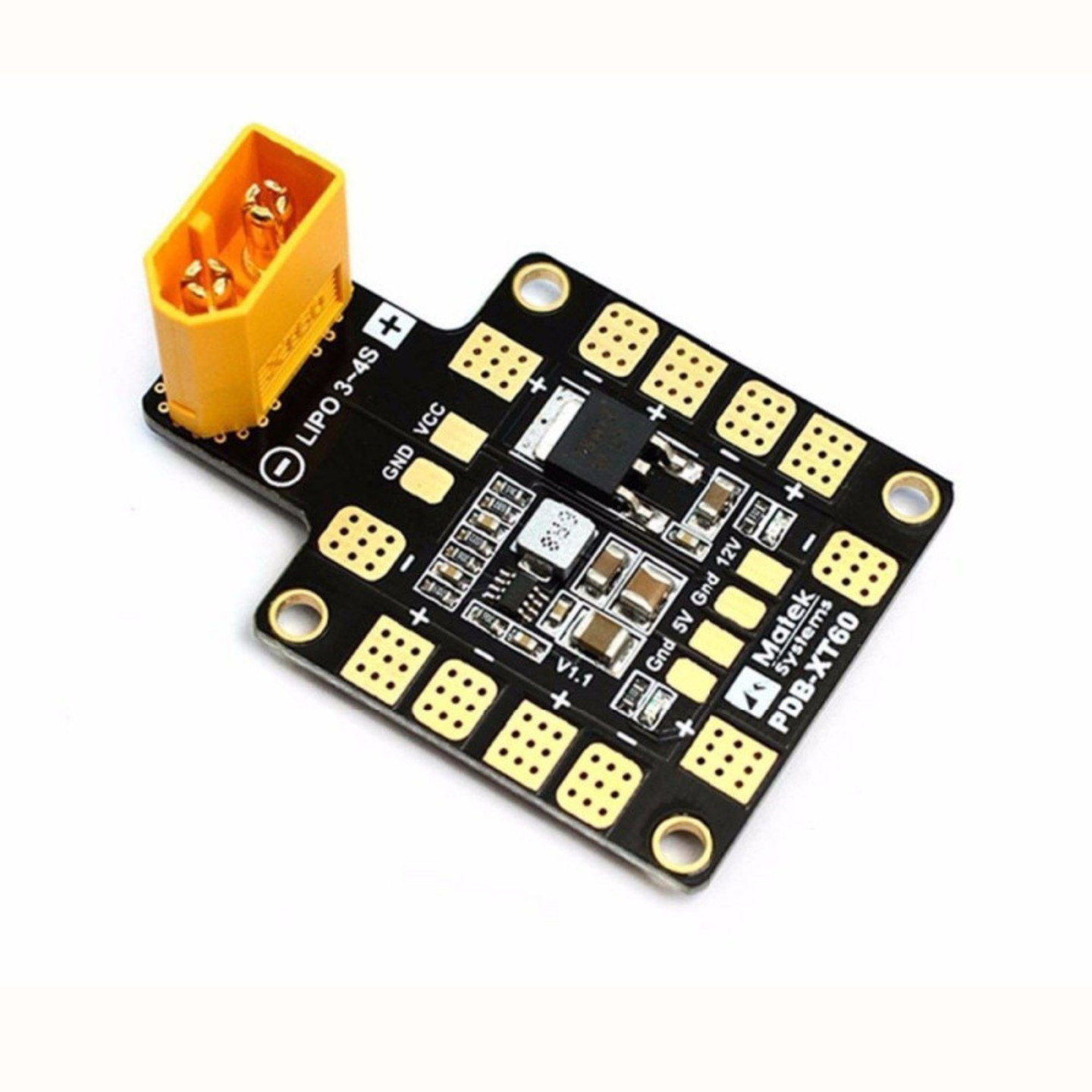

Matek PDB-XT60 with BEC 5V and 12V Power Distribution Board have been engineered to provide the highest possible performance and reliability in a 36x50mm, 4 layer PCB. It comes with an XT60 for easy connection to LiPo batteries.

Using BECs it distributes power from 3~4S LiPo packs to 6 ESCs, as well as providing synchronized and regulated DC 5V outputs for RC Receivers, Flight controllers, OSD, and Servos.

It also provides linear regulated DC 12V for powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc. It offers an XT60 socket to connect the LiPo pack conveniently.
Features :
4-layers and 1.6mm PCB
Built-in XT60 Socket
Total 6 pairs ESC solder tabs are fit for H or X type frame
5V and 12V Output LED indicators
Regulated 5V and 12V outputs
BEC 5V output: 5V/2A (Max.2.5A 10s/minute)
Output Ripple: 40mV (VIn= 16V, VOut= 5V@2A load)
Short-circuit tolerant: 5 seconds/minute
BEC 12V output (4S LiPoly, 13~18V DC): 12V/500mA (Max.0.8A 5s/minute)
BEC 12V output (3S LiPoly): =3S LiPoly voltage – 1V
Package includes :
1 x PDB-XT60 W/BEC 5V and 12V board
1 x XT60 male Connector
