Top Features:

– Improved circuit design, better components, and lower electrical noise!

– DJI HD VTX Connector (Plug-and-Play / No soldering required)



– FC indicator LEDs for visual debugging

Specs:

– MCU：STM32F405

– Gyro：MPU6000

– Baro: NO

– Betaflight OSD: IFLIGHT OSD （AT7456E)

– Blackbox: 16MB

– UARTS: 6

– I2C serial: SDA / SLA pads

– Smartaudio / IRC Tramp VTX protocol supported

– LED controller: Yes

– Beeper pad: Yes

– Firmware target : IFRC-IFLIGHT_BLITZ_F405

– Mounting：20*20mm/φ4

– Dimensions：30.5*27mm

– Weight：5.0g

Wiring suggestion:

– UART 1 for VTX HD / Analog

– UART 2 for a Receiver

– UART 3/4 for GPS or other sensors that require a serial port

– UART 6 for ESC Telemetry

Tips

1. F405 MCU has not inner inverter

2. SBUS、CRSF、ELRS、IBUS、DSM ETC… can be connected to any unused UART_RX, we suggest you connect to Uart_RX2

3. Frsky SmartPort, Tramp & Smartaudio can be connected to any unused UART_TX, we suggest you connect to Uart_TX1

4. F.port can be used, need to be connected to UART_TX2 and setup the inner inverter

Included Connectors (Plug-and-Play wire harness):

1xSH1.0 9pin connector for HD VTX/Analog VTX&CAM （5V/BAT/G/VO/T1/R1 /5V/G/VI）

1xSH1.0 8pin connector for ESC（R6/CUR/M4/M3/M2/M1/BAT/G)

1xSH1.0 6pin connector for Any Receiver or DJI（3V3/R2i/5V /G/R2/T2）

1xSH1.0 4Pin  connector GPS (T4/R4/G/5V)



1xSH1.0 4Pin connector LED&Beeper (BUZ/LED/G/5V)

4×0402 LEDs for FC STATUS (3.3V Red) / (Start Blue) / (5V Green)/（BAT Orange）




What’s in the package?

1 x BLITZ Mini F4 Flight Controller

1 set of FC connectors (as above)

1 set silicon grommets

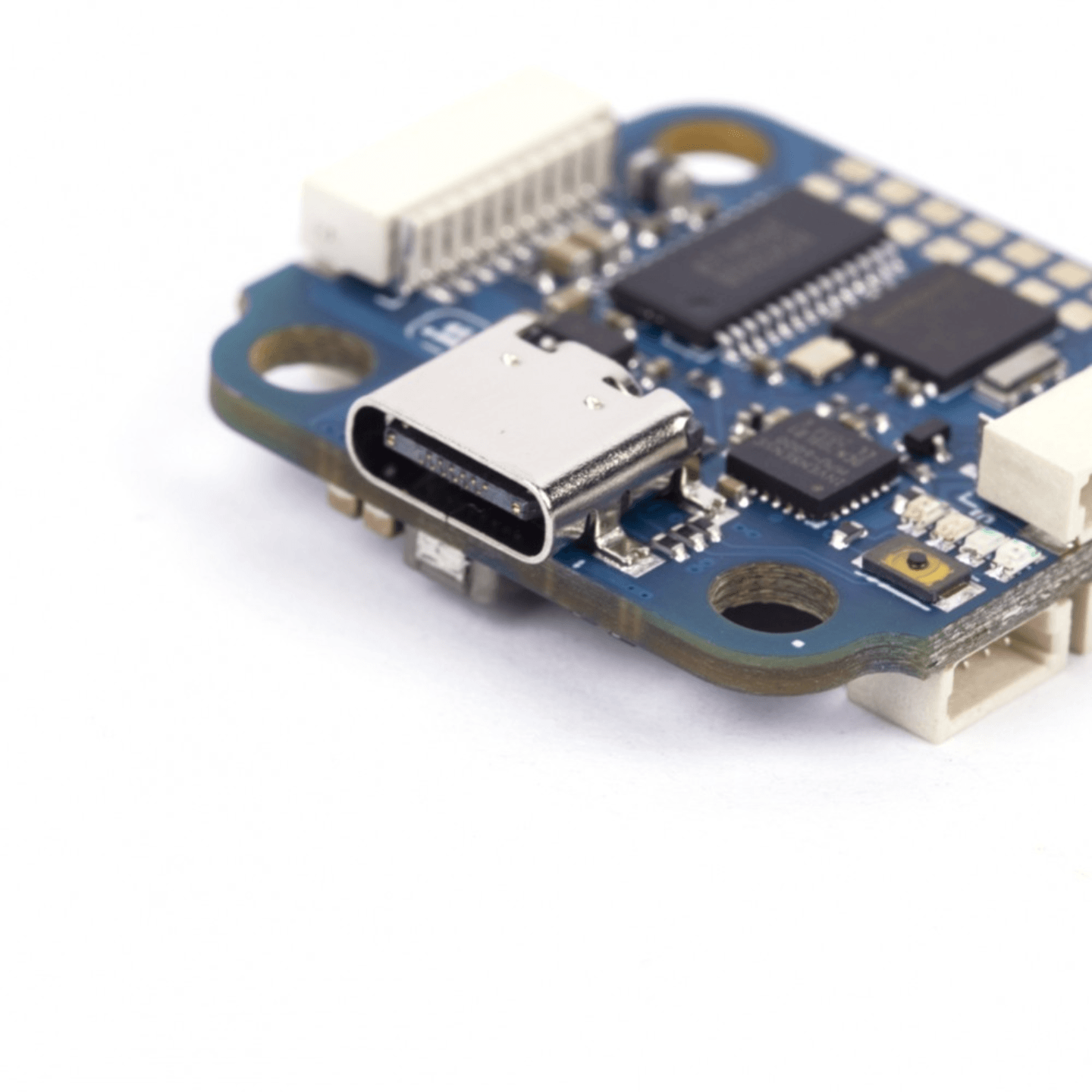

iFlight BLITZ Mini F4 Flight Controller
