Brand: Hobbywing
Weight: 30.00 g
The Hobbywing XRotor 20 Amp Multi-Rotor Brushless ESC is a great choice for 330 to 450 class drones. With quadcopter-optimized software and programmable timing, this easy-to-use ESC provides stable flight characteristics that make it perfect for custom builds.

Features

A special core program for multi-rotor controllers greatly improves throttle response.
Specially optimized software for excellent compatibility with disc-type motors.
All settings except the timing are preset, making usage simple, highly intelligent, and adaptive.

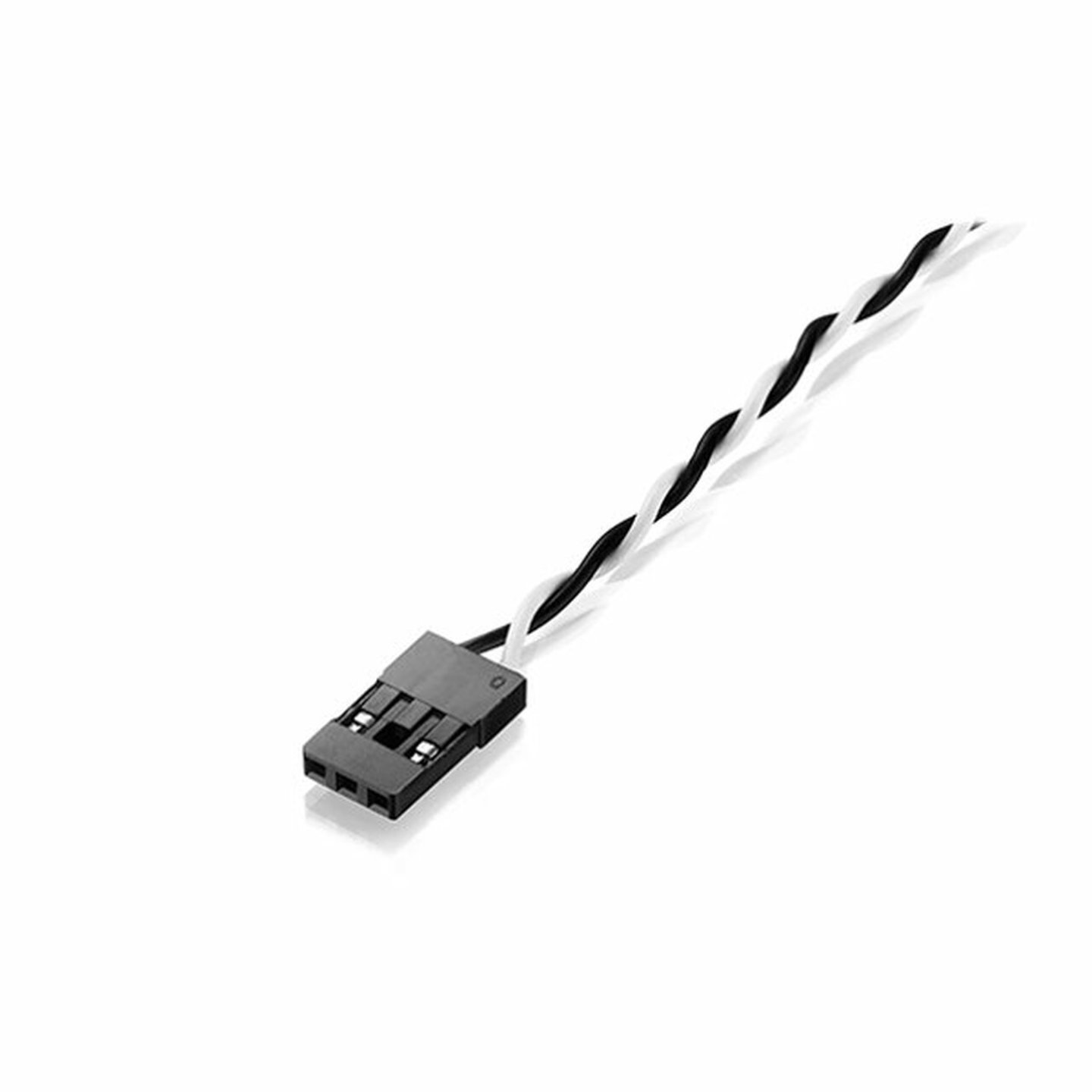

The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals)
A special drive chip has a much better MOSFET driving effect than a common driving circuit consisting of discrete components.
MOSFET with extra-low resistance brings high performance and great current endurance.
Specifications

Constant Current : 20 A
Peak Current : 30 A (10 Seconds)
BEC : No BEC
Lipo : 3-4S
Programmable Item : Timing （High/Intermediate)
Weight: 14gram
Size : 52.4 x 21.5 x 7mm

Hobbywing Xrotor 20A ESC for UAV
